SQB-Pedals 511 BLK, S 900 black

SQlab 511 Clipless Pedals - black

Your foot is the drive

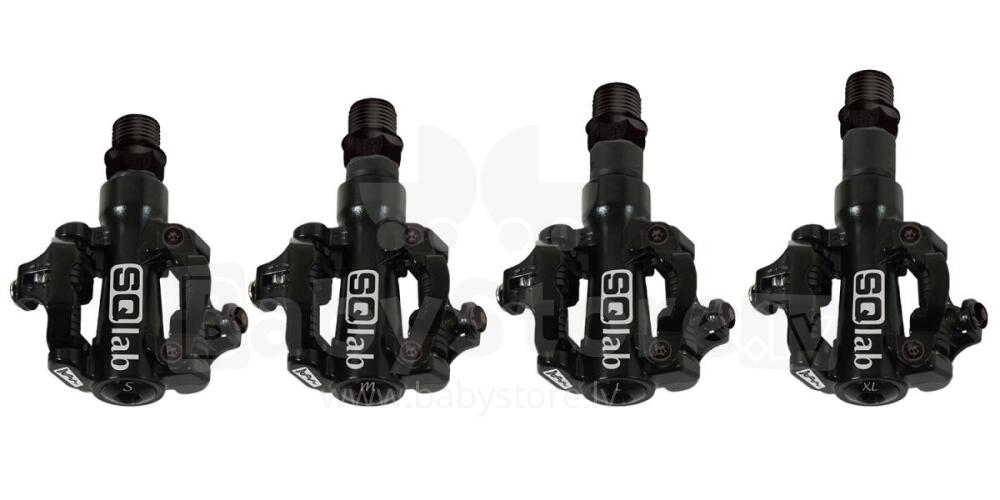

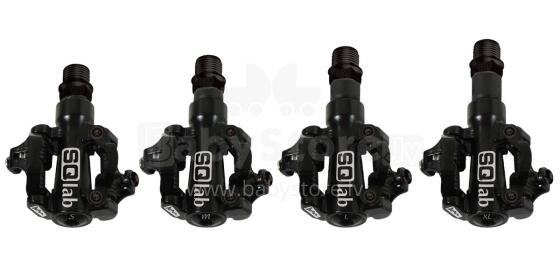

The 511 MTB clipless pedal is available in four different lengths. Conventional clipless pedals force the feet into an almost parallel position. The extended axle of the SQlab 511 Race clipless pedal allows a more physiologically natural foot position. This prevents one-sided strain - especially in the case of fibula head syndrome. The SQlab pedals optimize power transmission and can improve knee guidance, thereby reducing stress on the knee joints.

Features of the SQlab 511 clipless pedals:

• Area of use / bike type: MTB Tech & Trail
• Weight in grams (pair): approx. 310 (Short) / 322 (Standard) / 341 (Long) / 367 (XLong)
• Axle length in mm: -5 (Short) / 0 (Standard) / +8 (Long) / +15 (XLong)
• Distance crank to pedal center in mm: 47.9 (Short) / 54.9 (Standard) / 61.9 (Long) / 68.98 (XLong)
• Pedal surface in mm: 65 x 80
• Pedal body material: Aluminum
• Material pedal axle: CrMo
• Click system: SPD
• Freedom of movement in °: + / - 15
• E-BIKE Ready: Yes, if not wider than the original pedal
• DIN/ASTM categories: 4

Axle length

The version with a shorter axle is suitable for small shoe sizes with a small sit bone distance. The so-called Q-factor can thus be reduced. The SQlab pedal technology ensures a rounded pedal stroke in a natural, anatomical position.
