Features
Decorative built-in hood 90 cm wide with 5.5 cm front
Energy efficiency C
3 extraction levels
mechanical controls
270W motor, AT
Extraction power Max / Min: 645 / 385 m3/h
Max / Min sound level: 70 / 56 dB(A)
2 ECOLED lighting lamps, class A
Standard metal filters with dishwasher-safe plastic handles
Optional carbon filter: 02859391
Optional washable carbon filter: 02800918
Tube extension kit: 02861301
Non-return valve included

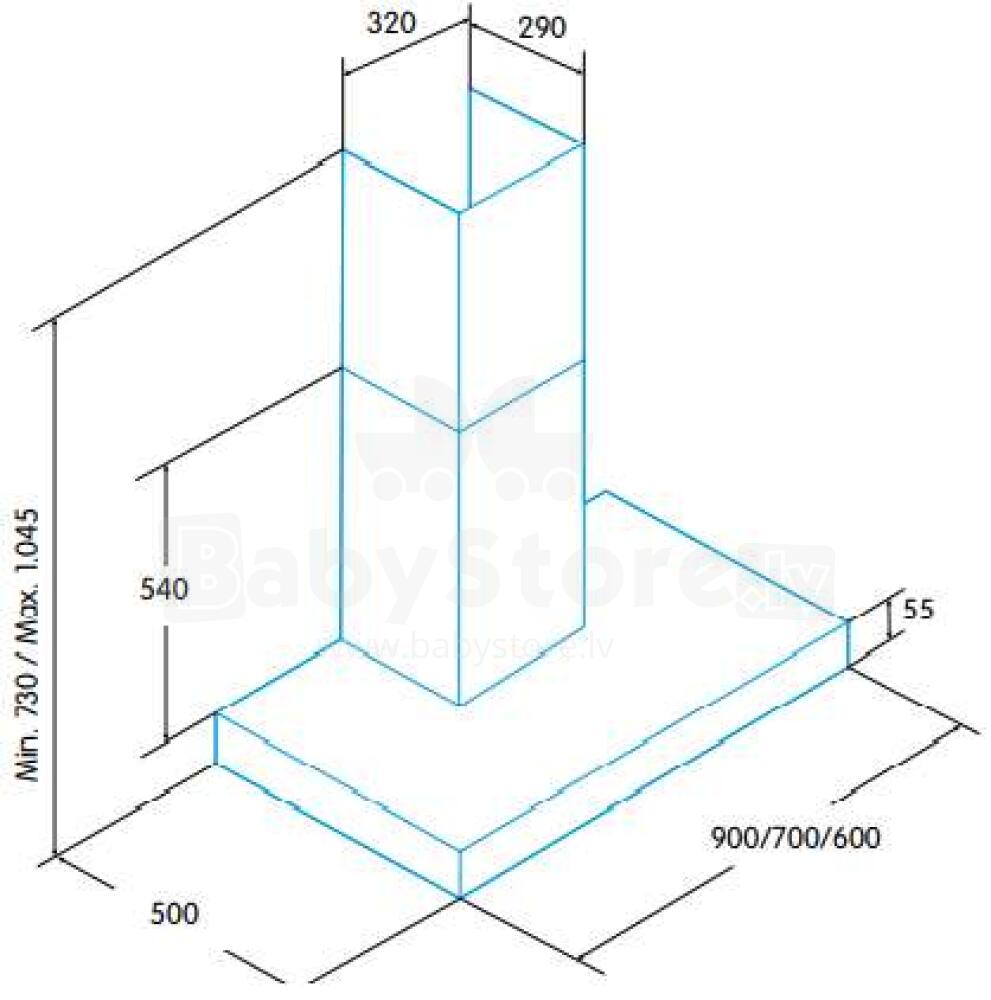

Dimensions (width x depth): 900 x 500 mm
Technical details
Width (mm): 900
Depth (mm): 500
Total height maximum (mm): 730
Total height at least (mm): 1045
Outlet diameter (mm): 125
AEC (energy consumption per year) (kWh/year): 102,5
Energy efficiency class: C
FDE (Fluid dynamic efficiency): 16,3
FDE class (Fluid dynamic efficiency class): D
LE (light efficiency) (lux/W): 36
LE class (light efficiency class): A
GFE (Grease filter efficiency): 88,5
GFE class (grease filter efficiency class): B
Airflow at minimum speed (m3/h): 385
Airflow at maximum speed (m3/h): 580
Sound power level at minimum speed (dB): 56
Sound power level at maximum speed (dB): 70
Po (power consumption in off mode) (W): 0
Ps (power consumption in standby mode) (W): 0
ƒ (time increase factor): 1,4
EEI (Energy efficiency index): 83,4
QBEP (flow rate at the point of best efficiency) (m3/h): 375,3
PBEP (Static pressure difference at best efficiency point) (Pa): 295
WBEP (Electrical power consumption at the point of best efficiency) (W): 188,8
WL (rated power consumption of the lighting system) (W): 7
EMIDDLE (Average illumination of the lighting system on the cooking surface) (lux): 252
Engine: Ta
Exhaust air performance levels: 3
Maximum power consumption: 270
Maximum air pressure: 430
Type of control unit: Mechanical / Push button
Automatic shutdown timer: No
Electronic filter saturation display: No
Filter: Aluminium/expanded metal
Number of grease filters: 3
Internal shielding: No
Lighting type: EcoLED
Illumination with adjustable intensity: No
Number of luminaires: 2
Minimum height distance to an electric hob (mm): 650
Minimum height distance to a gas countertop hob (mm): 650
Installation with outlet pipe to the outside / circulating air: Both
Easy installation: No
Voltage range (V): 277
Frequency (Hz): 220-240
Rated power (kW): 50-60
Rated current (A): Class II
Plug type: EU - Schuko
Extension shaft: 2861301
Check valve: 2832002
Metal Filter: 2800905
Kobi filter (expanded metal and activated carbon): 2800918
Activated carbon filter: 2859391
Decorative panel accessories (APD) (Optional): 02840300
