Engineered for Every Effort. New Wahoo Speedplay Pedal Instructions

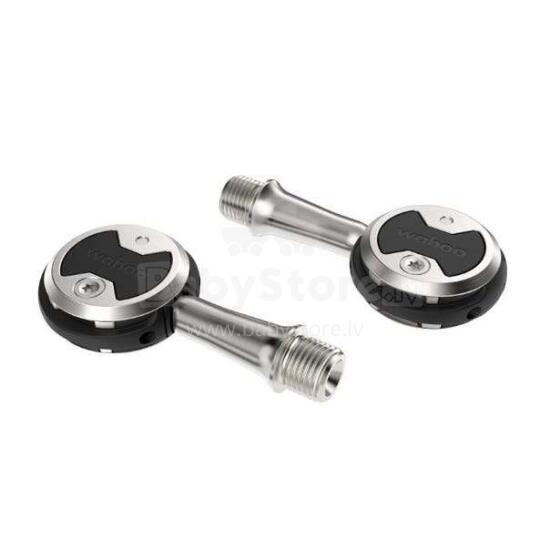

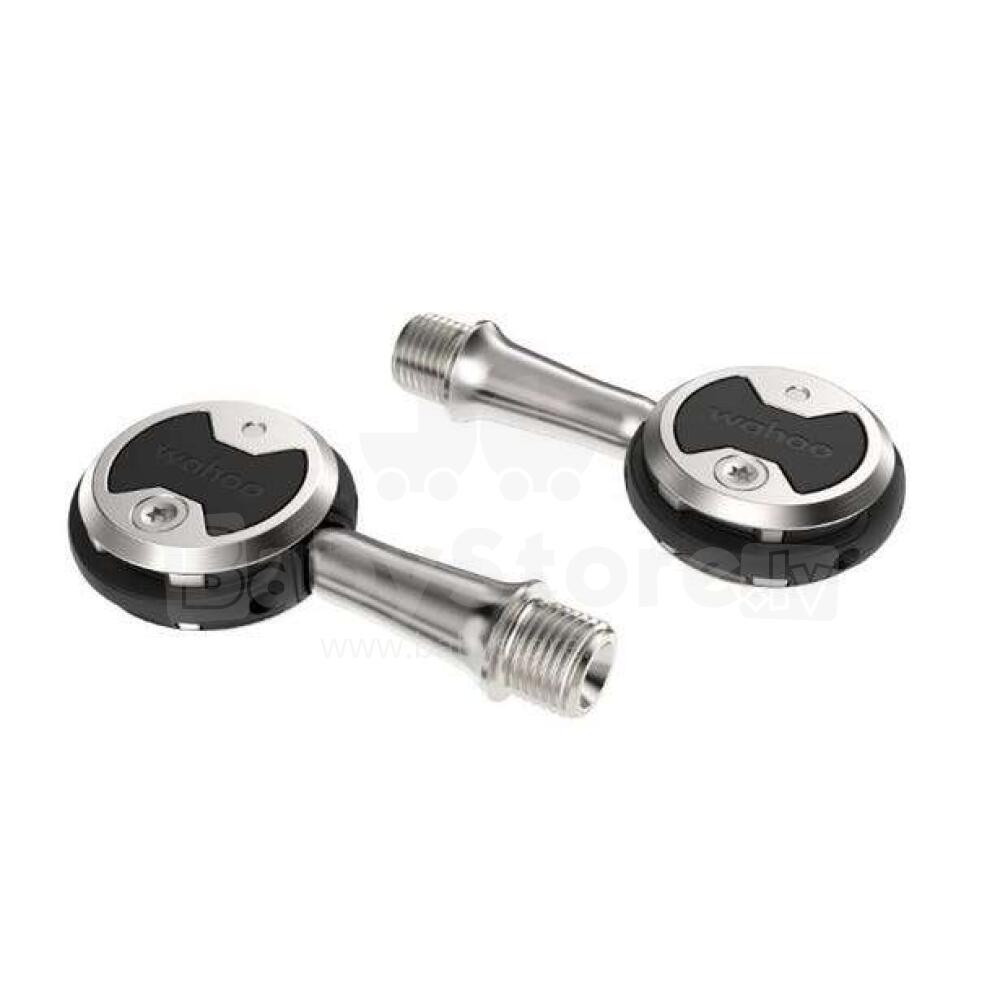

Built to take on anything, the SPEEDPLAY ZERO road pedal is uniquely qualified to withstand the demands of everything from all-out racing to the epic grind of a double-century. The stainless steel pedal and integrated cleat system offer peak power transfer and exceptional durability. The customized fit and dual-sided entry will allow you to crank on the pedals in confidence and comfort.
TECH SPECS:
Part Number: WFPRZ1S53
Physical Dimensions: 3.9" x 2" x 2"
Shipping Weight: 1.22lb
Box Dimensions: 5.9" x 2" x 3.9"
Country of Origin: Vietnam
Weight: 222g per pair
Stack Height: 11.5mm (3 hole) 8.5 (4 hole)
Q Factor: 53mm
Body Material: Grivory
Spindle Material: Stainless Steel
Bearing Type: Triple Sealed Cartridge & Needle Bearings
Cornering Clearance: 39°
Max Rider Weight: No restriction
Cleats: Standard Tension Included
Release Angle: Micro Adjustable from 0° to 7.5°
Pedal Float: Adjustable from 0° to 15°
Cleat Fore - Aft Adjustability: Up to 13mm
Cleat Left - Right Adjustability: Up to 8mm
Walkable Cleat: Yes (adaptor included)
IN THE BOX:
Left and Right Pedals
Cleat Assembly
Screw Packet
Quick Start Guide
Important Product Information Guide
Additional Tools Required for Assembly: #2 Philips Head Screwdriver and 8mm Allen Wrench
Parameters:
| Shipping size, m (Length x Width x Height) |
0.099 x 0.002 x 0.002 |
| Shipping weight, kg |
0.522 |
| Store |
Size |
|
Quantity |
| Warehouse (5-7 working days) |
|
|
5 pcs. |
Quantity is FYI only, goods could be on reservation
