SUPERCHARGER.
High performance bikes are critical to the development of today's best young riders. The technicality they can achieve is already far beyond the normal kids bikes and safety is paramount.

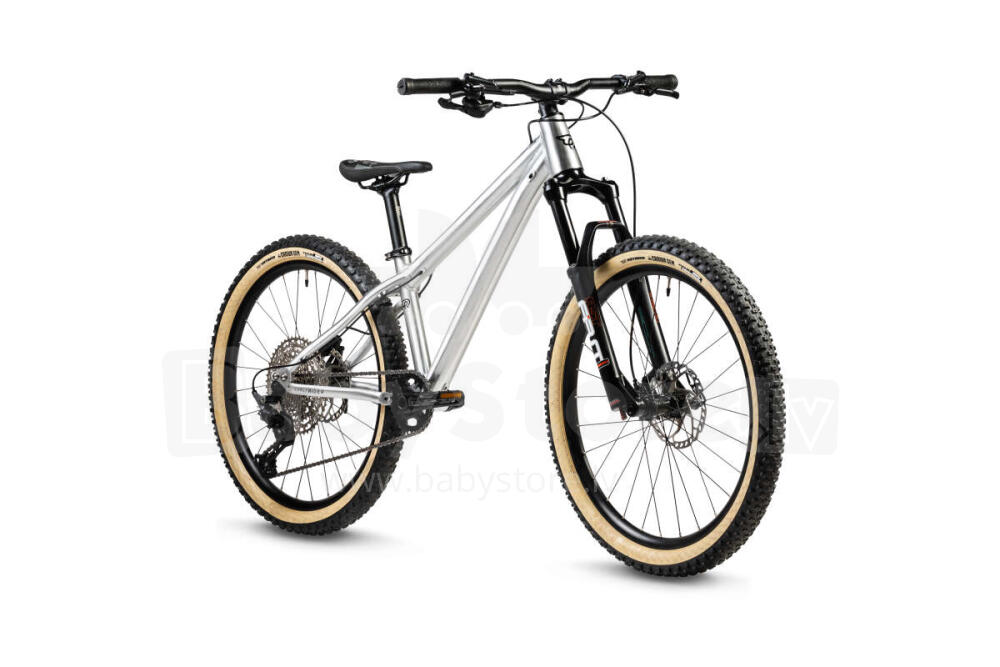

Our Hellion range is designed with them in mind and our 24 is our flagship, race ready hard tail.
Progressive geometry combines with meticulous manufacturing. The H24 frame is made with triple butted tubing and is mitred by CNC machines. The clean, simple lines belie the detail: internal cabling, dropper ready, sliding drop outs, a tapered headset and a CNC'd yoke that will take an impressive 2.6" tyre.
A market leading 1 x11 Shimano clutch equipped drivetrain with a huge 381% gear range. Rapid fire shifters for immediate transitioning, direct mounts cranks, narrow wide chainrings and external bottom bracket for super smooth drive transfer to an immensely capable wheel set. Tubeless ready, double walled rims, CNCd' straight pull hubs on thru axles and running high thread count folding tyres.
Supported by light actuating Shimano hydraulic brakes that provide immediate, powerful braking no matter the conditions and a proven 100mm travel RST fork specifically chosen to complement the geometry of the bike. Your kid will get from the top to the bottom of the bike park before you can take it all in, let alone catch them up.
| STANDOVER HEIGHT | 65CM |
| FRAME | TRIPLE BUTTED AL6061, INTERNAL CABLING, DROPPER READY |
| FORK | RST FIRST RST, 100MM TRAVEL, 15MM THRU AXLE, PM DISC MOUNT |
| STEERER | TUBE AL6061 |
| CRANKS | SAMOX 150MM DIRECT MOUNT, NQF |
| PEDALS | ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING |
| BOTTOM BRACKET | SAMOX 24MM EXTERNAL CUP, CARTRIDGE BEARING |
| RIMS | 24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE |
| REAR HUB | CNC'D STRAIGHT PULL AL6061, 12x142 THRU AXLE |
| FRONT HUB | CNC’D STRAIGHT PULL AL6061, 15MM THRU AXLE |
| AXLES | THRU AXLES AL7075, 15MM FRONT, 15MM REAR |
| CHAIN | KMC X11EL |
| CHAINRING | SAMOX DIRECT MOUNT STEEL 30T |
| WEIGHT | 9.6KGS W/O PEDALS |
| SHIFTER | SHIMANO SL-M5100-IR DEORE RIGHT 11-SPEEDRAPIDFIRE |
| REAR CASSETTE | SHIMANO CS-M5100-11 DEORE 11-SPEED 11-51T |
| BRAKES | SHIMANO DEORE BL-MT6000, 160MM ROTORS |
| LEVERS | SHIMANO DEORE BL-M6000 |
| FRONT TYRE | VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING |
| REAR TYRE | VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING |
| HEADSET | SEMI INTEGRATED, TAPERED 1 1/8” - 1 1/5" CARTRIDGE BEARING |
| STEM | RITCHEY OS FORGED AL6061, 35MM REACH |
| BARS | 640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE |
| GRIPS | ER LOCK ON KRATON 115MM |
| SEAT POST | RITCHEY, 30.9MM x 350MM, AL2014 |
| SADDLE | SDG FLY JR, BLACK |
| SEAT CLAMP | RITCHEY QR, 34.9MM |
| DERAILLEUR | SHIMANO RD-M5100 DEORE SGS 11-SPEED |
| SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |
LINK:
https://eu.earlyrider.com/products/hellion-24?variant=39674138951830
Parameters:
| Shipping size, m (Length x Width x Height) | 1.195 x 0.305 x 0.76 |
|---|---|
| Shipping weight, kg | 14.68 |
| Store | Size | Quantity | |
|---|---|---|---|
| Warehouse (5-7 working days) | 2 pcs. |
