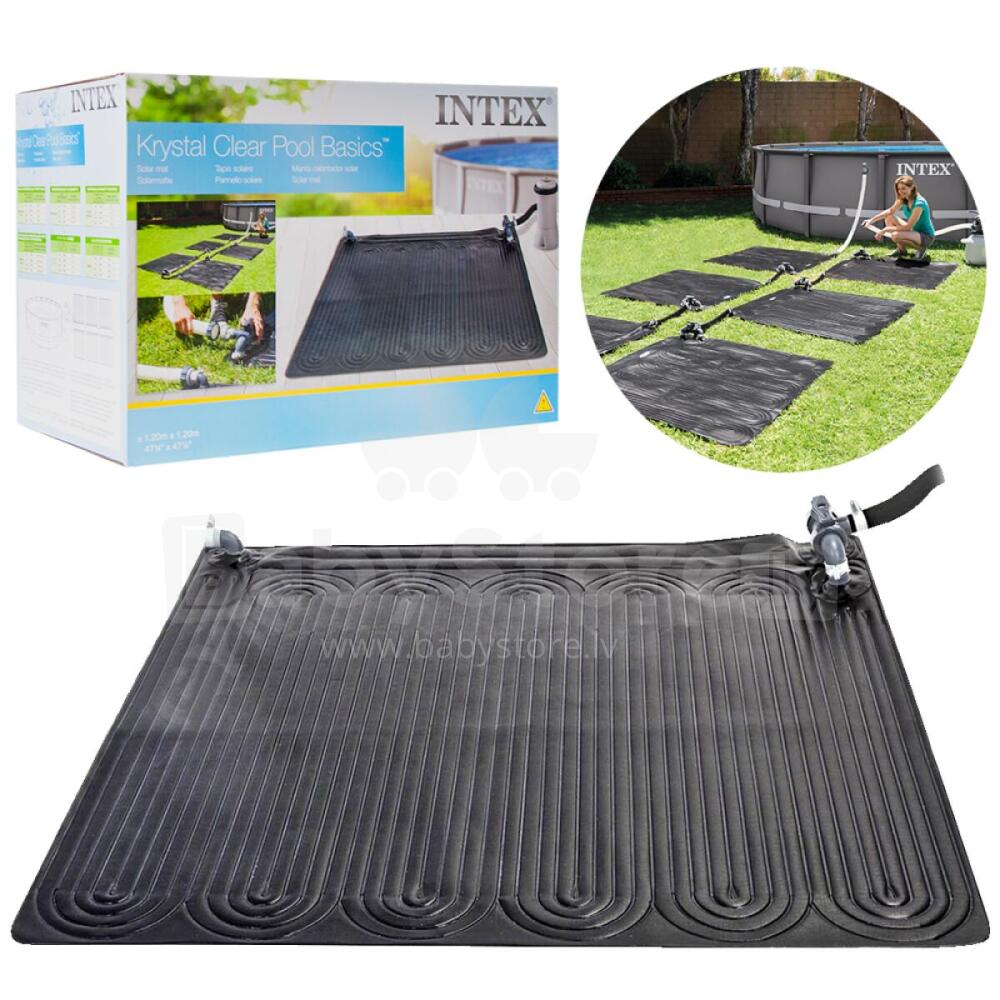

Solar water heating mat for the swimming pool Intex 28685

Solar panel heating water

• It heats the water by 3-5°C using sunlight
• Possibility of combining several mats to increase the water temperature
• Dimensions 120x120cm

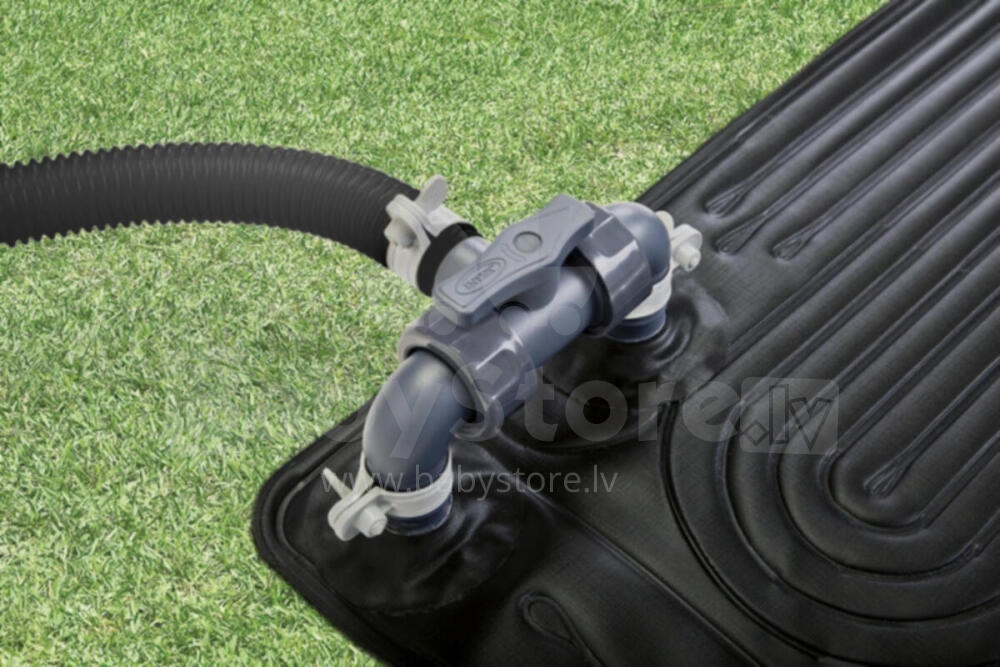

• A special valve allows water to bypass the mat
• Dedicated to pumps with capacity from 2006 to 5678 l/h

• Solid workmanship
• High efficiency
• Product of the Intex brand

Free, ecological water heating

By connecting one solar mat to your pool water pump, you can increase the water temperature by up to 5 degrees. Solar cells transfer heat obtained from solar energy to the water flowing through it. The mat has dimensions of 120x120cm and its important advantage is the ability to connect even several mats into one system . This way, in sunny weather, you can heat the water in your pool by up to a dozen or so degrees, completely free of charge.

Connecting the mat

The mat allows you to connect hoses with a diameter of 32 mm, but is additionally equipped with adapters thanks to which you can also connect hoses with a diameter of 38 mm. For its proper operation, it is necessary to connect a water pump with a capacity of no more than 5,678 l/h.

Number of mats needed to heat the water

• 1 pc. for swimming pools with dimensions: 183x51 cm; 244x76 cm; 305x76 cm
• 2 pcs. for swimming pools with dimensions: 366x76 cm; 366x84cm; 366x91 cm
• 3 pcs. for swimming pools with dimensions: 457x84 cm; 457x91 cm
• 4 pcs. for swimming pools with dimensions: 457x107 cm; 457x122cm; 488x107 cm
• 5 pcs. for swimming pools with dimensions: 488x122 cm; 549x122cm

• 2 pcs. for swimming pools with dimensions: 305x76 cm; 366x76cm; 366x84cm; 366x91cm
• 3 pcs. for swimming pools with dimensions: 366x99 cm
• 4 pcs. for swimming pools with dimensions: 427x107cm; 457x91; 457 x 107 cm; 427x122 cm
• 5 pcs. for swimming pools with dimensions: 457x122; 488x107cm
• 6 pcs. for swimming pools with dimensions: 549x122 cm

• 1 piece for swimming pools with dimensions: 300x175x80 cm
• 2 pcs. for swimming pools with dimensions: 400x200x100 cm
• 3 pcs. for swimming pools with dimensions: 488x244x107 cm; 503x274x122 cm
• 4 pcs. for swimming pools with dimensions: 274x457x122 cm; 610x305x122 cm
• 5 pcs. for swimming pools with dimensions: 274x549x132 cm

Dimensions

• Length: 120 cm
• Width: 120 cm
• Hose diameter: 32 mm

Specification

• Weight 3.70 kg
• Water heating: 3°C - 5°C
• Product code: 28685
• Manufacturer: Intex
